How to use the SIN() function in Excel

Its returns the trigonometric sine of an angle. The sine represents the ratio of the length of the opposite side to the hypotenuse in a right-angled triangle.

Syntax:
SIN(number)

Argument:

Key Concepts:

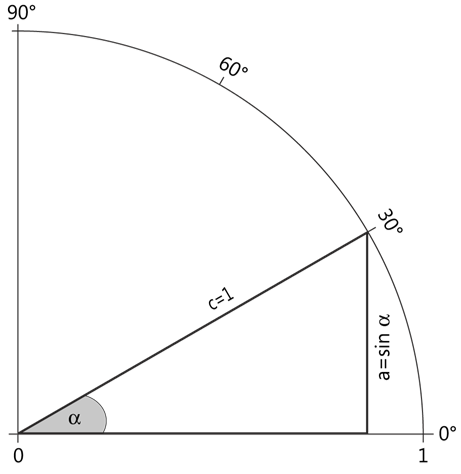

1. Right Triangle Relationship: In a right triangle, sin(α) = opposite side / hypotenuse
2. Unit Circle Properties:
   • Sine values range between -1 and 1
   • Reaches maximum (1) at 90° (π/2 radians)

1. Periodicity: The sine function is periodic with 2π (360°) period

Important Notes:

• Excel requires angles in radians
• To convert degrees to radians:
  • Multiply by PI()/180, or
  • Use RADIANS() function
• The function returns results between -1 and 1

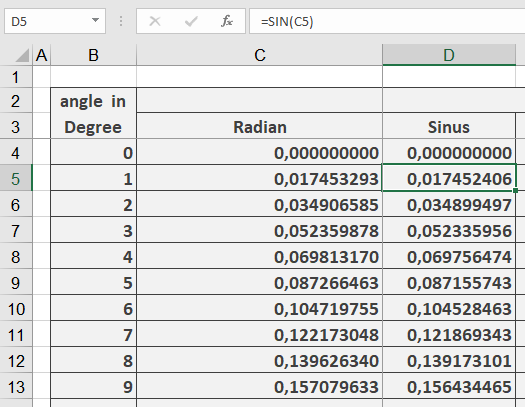

 Example:

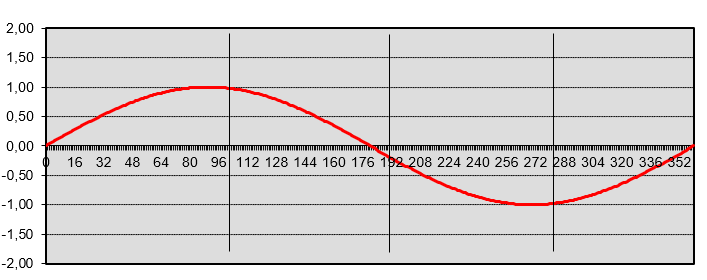

Visualization Tip:
The sine curve can be plotted with:

• x-axis: Angle (in radians)
• y-axis: SIN(x)
  This produces the characteristic wave pattern that oscillates between -1 and 1.

Common Applications:

1. Physics (wave motions)
2. Engineering (oscillations)
3. Navigation (distance calculations)
4. Computer graphics (wave patterns)
